All Rohler Classic

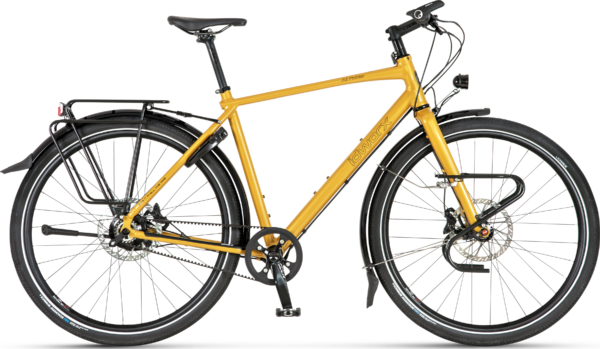

idworx All Rohler Classic – The Ultimate Low-Maintenance Trekking Bike
The idworx All Rohler Classic is a tribute to our most successful trekking bike of all time – the legendary idworx Easy Rohler. Built on years of real-world experience, this premium touring and trekking bike combines everything riders value most: robustness, low maintenance, durability, and outstanding long-distance comfort.
With the All Rohler Classic, idworx continues the success story of the Easy Rohler by offering a fixed, perfectly optimized configuration developed through decades of engineering expertise, close cooperation with experienced idworx dealers, and the valuable feedback of customers who have traveled hundreds of thousands of kilometers worldwide.
At the heart of the idworx All Rohler Classic is the legendary Rohloff Speedhub 14-speed gear hub, one of the most reliable and low-maintenance drivetrain systems available for trekking and expedition bikes.
This makes the All Rohler Classic the perfect choice for cyclists who want maximum reliability without compromise.
The All Rohler Classic comes standard with the exclusive idworx Long-Life hardened steel chainring, specifically developed for exceptional wear resistance and a significantly longer service life compared to conventional chainrings.
Combined with the premium KMC chain, this drivetrain delivers excellent efficiency, reduced maintenance, and outstanding long-term reliability—even under heavy use and demanding touring conditions.
For riders looking for the ultimate low-maintenance solution, the Gates CDX belt drive is available as an optional upgrade.
Unlike many bikes with endless configuration options, the idworx All Rohler Classic is based on a carefully selected fixed setup that has been refined over many years.
Every component has been chosen for one reason: maximum performance and long-term reliability.
This philosophy ensures that riders receive a bike that is ready for serious trekking, commuting, and travel from day one—without unnecessary compromises or unnecessary luxury.
No unnecessary complexity. No compromises. Just a perfectly engineered premium trekking bike built to perform for years—whether on your daily commute, long-distance adventures, or around-the-world expeditions.
idworx Specials
![copyright protected henk bruyns beeldprodukties 2012
[#Beginning of Shooting Data Section]
Nikon D3X
2014/09/12 10:27:47.49
Time Zone and Date: UTC+1, DST:OFF
RAW (14-bit)
Image Size: L (6048 x 4032), FX
Lens: VR 105mm f/2.8G
Artist: HENKBRUYNS
Copyright: BRUYNSBEELDPRODUKTIES
Focal Length: 105mm
Exposure Mode: Manual
Metering: Matrix
Shutter Speed: 1/60s
Aperture: f/22
Exposure Comp.: 0EV
Exposure Tuning:
ISO Sensitivity: ISO 200
Optimize Image:
White Balance: Auto, 0, 0
Focus Mode: Manual
AF-Area Mode: Single
AF Fine Tune: OFF
VR: OFF
Long Exposure NR: OFF
High ISO NR: OFF
Color Mode:
Color Space: sRGB
Tone Comp.:
Hue Adjustment:
Saturation:
Sharpening:
Active D-Lighting: Normal
Vignette Control: Normal
Auto Distortion Control:
Picture Control: [SD] STANDARD
Base: [SD] STANDARD
Quick Adjust: 0
Sharpening: 3
Contrast: Active D-Lighting
Brightness: Active D-Lighting
Saturation: 0
Hue: 0
Filter Effects:
Toning:
Map Datum:
Image Authentication: OFF
Dust Removal:
[#End of Shooting Data Section]](https://www.idworx-bikes.de/wp-content/uploads/2026/05/RnR-aandrijving-1536x1024.jpeg "RnR aandrijving")
| ST (A) | HT (B) | HA (C) | Rake (D) | Drop (E) | CS (F) | TT (G) | SA (H) | Stack | Reach | |
|---|---|---|---|---|---|---|---|---|---|---|
| AR-CL man | 52 | 134 | 70,5 | 45 | 80 | 471 | 600 | 73,5 | 606 | 415 |
| AR-CL man | 56 | 164 | 70,5 | 45 | 80 | 471 | 604 | 73 | 634 | 410 |
| AR-CL man | 60 | 204 | 70,5 | 45 | 80 | 471 | 622 | 72,5 | 672 | 410 |
| AR-CL man | 64 | 249 | 71 | 45 | 75 | 471 | 641 | 72 | 712 | 410 |
| AR-CL lady | 48 | 134 | 70,5 | 45 | 85 | 471 | 589 | 74 | 606 | 415 |
| AR-CL lady | 52 | 144 | 70,5 | 45 | 80 | 471 | 600 | 73,5 | 606 | 415 |
| AR-CL lady | 56 | 164 | 70,5 | 45 | 80 | 471 | 604 | 73 | 634 | 415 |
| AR-CL comfort | 48 | 180 | 69,5 | 45 | 85 | 471 | 570 | 74 | 606 | 396 |
| AR-CL comfort | 52 | 204 | 70,5 | 45 | 80 | 471 | 585 | 73,5 | 632 | 398 |
| AR-CL comfort | 56 | 220 | 70,5 | 45 | 80 | 471 | 600 | 73 | 672 | 395 |
| Generation | Model |
|---|---|
| Gen. 1.0 | All Rohler Classic |
| Section | Item | Description |
|---|---|---|
| Frame | Material | triple butted 6061 T6 Aluminium |
| Dropouts | Belt-Ready, Rohloff OEM1 | |
| Brake mount | Disc, IS2000 | |
| Bottom bracket | idworx Excentric | |
| Kickstand mount | 18 mm / M6 | |
| Specials | iSR steering block limiter, Asymetric chainstays | |
| Sizes | Man: M(52), L(56), XL(60), XXL(64) Lady: S(48), M(52), L(56) Comfort: S(48), M(52), L(56) | |
| Fork | Material | triple butted 6061 T6 Aluminium |
| Dropouts | Forged, 15 / 110 mm Thru Axle, SON SL prepared | |
| Brake mount | Disc, IS2000 | |
| Headset | Cane Creek Hellbender 70, 1 1/8- 1 1/2, ZS44/EC44 | |
| Specials | Very sturdy, Special light and fender mount, Twin Lowrider mounts | |
| Drivetrain | System | Rohloff Speedhub |
| Gears / gear ratio | 14 /13,5% | |
| Chainrings / Cassette | idworx Long Life 43T / Rohloff 17T | |
| Chain | KMC e1 EPT | |
| Crankset | Driveline 170 (S-M), 175 (L-XXL) | |
| Bottom bracket | idworx EBB Long Life | |
| Brakes | System | Shimano MT 400, 4-Piston, 3-Finger, Resin |
| Brake discs | Shimano 180 mm / idworx Rohloff 180 mm | |
| Wheels | Front hub | SON 28 15 / 110 mm, Disc 6 bolt, SON SL Self-Connecting |
| Rear hub | Rohloff Speedhub, 9 /135 mm | |
| Rims | idworx DaRim Disc II, 622-25, 32 H | |
| Spokes / nippels | Stainless black / Messing | |
| Tires | Schwalbe Marathon Efficiency 55/622, Schwalbe SV19A innertube | |
| Lights | Front | SON-idworx Edelux II for idworx cable harness, idworx CNC lightmount |
| Rear | B+M Toplight line plus brake | |
| Finishing kit | Handlebar | DD Riserbar |
| Stem | DD Swell 100 mm, -10° to +40° | |
| Handlebar grips | Ergon GP3L | |
| Bell | Billy | |
| Seatpost | DD 27,2 mm | |
| Saddle | Selle Italia X-Bow 155 mm | |
| Carriers front / rear | x / Tubus Logo idworx + idworx DaBrace | |
| Mudguards | idworx SKS CAB 65 | |
| Lock | Abus Pro Ampero 4750 X | |
| Options - Drive Technology | Beltdrive | Gates CDX Beltdrive 50/22-122T |
| Product information | Colour | Glossy Black |
| Weight | 15,5kg * * Without Pedals, Lock and options |
Please note that, based on component availabiltity and other factors specifications are subject to change without notice
idworx Stress Reducer steering angle limiter
effectively prevents the front wheel from turning over and thus protects against damage to the frame, headlights or even the shift cables and brake hoses, which can occur due an accident or if the bike falls over.
idworx EBB Long Life II
Eccentric bottom bracket with integrated, rustproof ball bearings. The only bottom bracket on the market with bearings that are actually sized to suit the load for an extremely long service life and optimal smooth running even under the highest loads. It also offers the option of installing our idworx Hesling chain case. Suitable for all idworx Rohloff models with eccentric bottom bracket for adjusting the chain play. Our idworx EBB-LL II is also compatible with Gates Carbon Drive belt drive.
idworx Long Life Chain Rings
The Long Life chain ring we developed at idworx made of hardened stainless steel with an uneven number of teeth together with the extra-hardened idworx KMC E1 ePT chain and the idworx Rohloff steel sprocket, makes for unprecedented longevity. In our oPinion models we even fit our Long Life chain ring back and front. Chain tension requires less frequent checks - a pleasing consequence of a more wear-resistant drive.
