Grandone travel Wachtberg-Edition

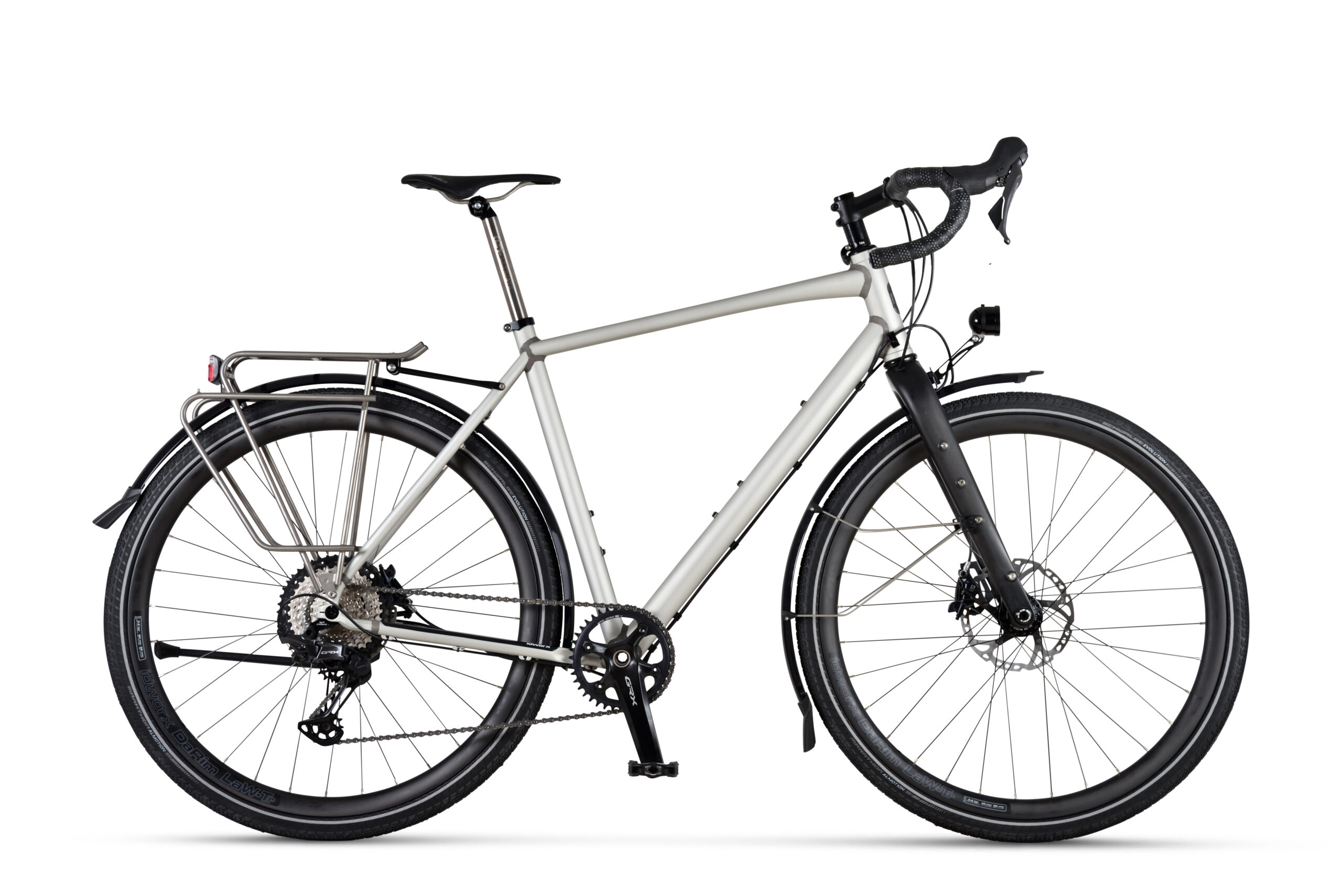

The idworx Grandone Wachtberg-Edition is the lightweight performance randonneur
Maximum performance through minimum weight: with the Wachtberg Edition, idworx elevates premium touring and performance bikes to the highest level—without compromising everyday usability or permissible system weight.
Created for the 25th Anniversary, these special models combine 25 years of engineering expertise with lightweight, durable components and corrosion-resistant anodized aluminium frames.

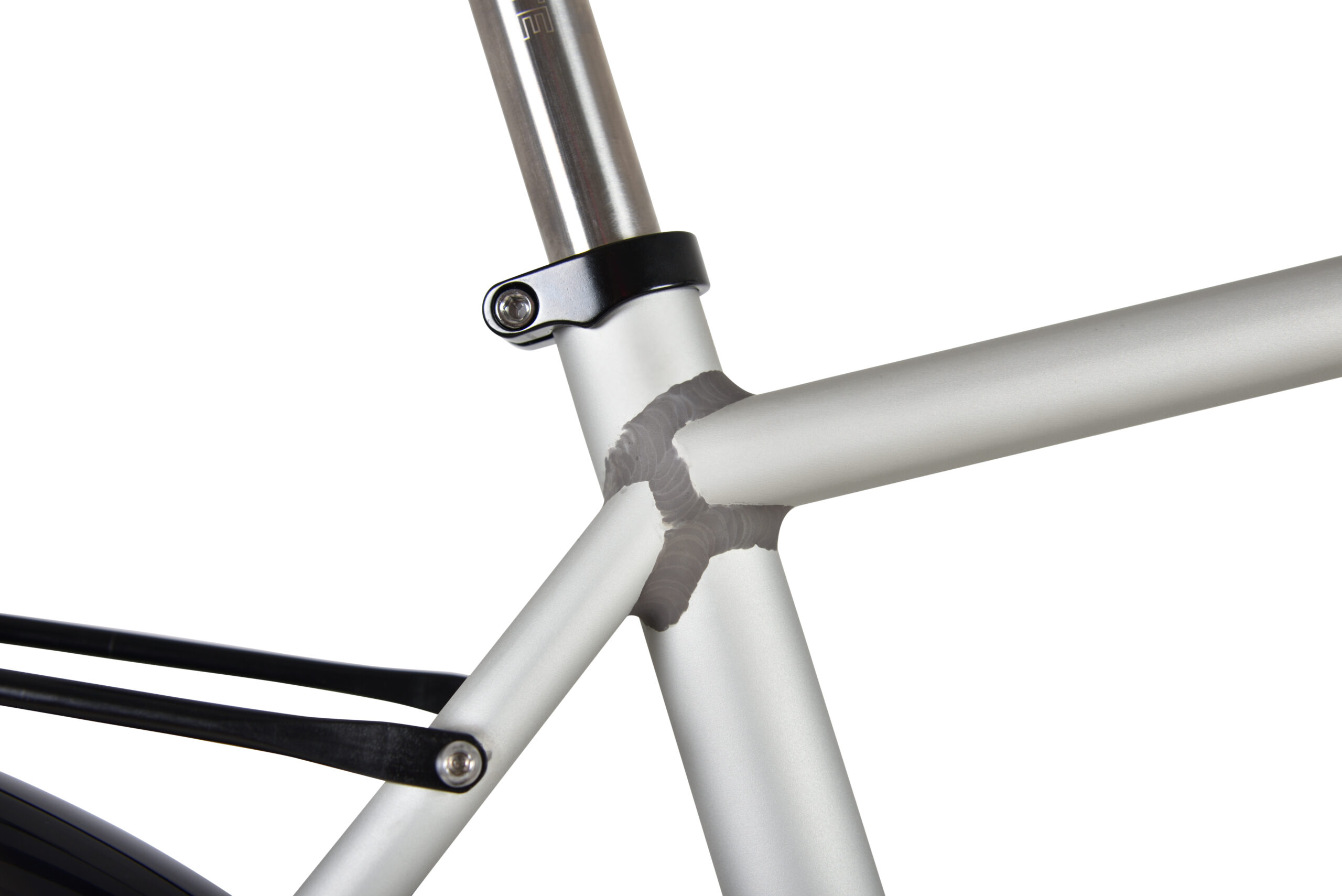

Available in “Super Natural” and “Super Black,” the anodized finish highlights visible weld seams and machining marks for a distinctive high-tech look.
With the Grandone, idworx brings a high-performance derailleur bike back into the range—built for riders who demand maximum efficiency, speed, and reliability on long-distance tours, gravel adventures, and fast road rides.
The triple-butted frame combines lightweight construction with exceptional stiffness and long-term durability. Designed as a premium randonneur, the Grandone offers the ideal balance of speed, comfort, and control on every terrain.
Premium details include the proven iSR-Road steering angle limiter for frame protection and safe handling, as well as the oversized T47 bottom bracket for maximum stiffness, durability, and easy maintenance.
Three bottle cage mounts provide maximum touring flexibility, while newly developed dropouts ensure a rigid disc brake mount, integrated side stand attachment, and perfectly positioned luggage rack mounts for travel and bikepacking.
The reliable Syntace X12 thru axle (12x142 mm) guarantees precise wheel alignment, improved power transfer, and maximum stability under heavy load.
The idworx Grandone is the uncompromising performance randonneur for cyclists who expect premium engineering, innovative frame design, and exceptional riding quality on every journey.
idworx Specials
| ST (A) | HT (B) | HA (C) | Rake (D) | Drop (E) | CS (F) | TT (G) | SA (H) | Stack | Reach | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR WE | 46 | 134 | 70,5 | 43,9 | 60 | 450 | 530 | 74 | 568 | 367 |
| GR WE | 52 | 144 | 71 | 45 | 80 | 450 | 555 | 74 | 617 | 378 |
| GR WE | 56 | 178 | 71,5 | 45 | 75 | 455 | 580 | 73 | 647 | 382 |
| GR WE | 60 | 210 | 72 | 45 | 75 | 460 | 605 | 72,5 | 679 | 391 |
| Generation | Model |
|---|---|
| Gen. 1.0 | Grandone Travel Wachtberg Edition |
| Section | Item | Description |
|---|---|---|
| Frame | Material | triple butted 6061 T6 Aluminium |
| Dropouts | Forged X-12, Optional kickstand mount | |
| Brake mount | Disc, IS2000 | |
| Bottom bracket | T47 | |
| Kickstand mount | 18 mm / M6 | |
| Specials | iSR steering block limiter, Asymetric chainstays | |
| Sizes | 52, 56, 60 | |
| Fork | Material | Carbon |
| Dropouts | 15 / 110 mm Thru Axle, SON SL prepared | |
| Brake mount | Disc, Flatmount 160 max. Scheibe 180 mm | |
| Headset | Cane Creek Hellbender 70, 1 1/8- 1 1/2, ZS44/EC44 | |
| Specials | Very sturdy, Maximal systemweight 160 kg | |
| Drivetrain | System | Shimano GRX 810 2x11 |
| Gears / gear ratio | 22 / - | |
| Chainrings / Cassette | 46-30 / Shimano XT 11/40 | |
| Chain | KMC e11 EPT | |
| Crankset | Shimano GRX 600 46-30 | |
| Bottom bracket | Wheels Manufacturing T47 - 24 | |
| Brakes | System | Shimano GRX with SLX 4 pistons |
| Brake discs | Shimano 180 mm | |
| Wheels | Front hub | SON 28 15 / 110 mm, Disc 6 bolt, SON SL Self-Connecting |
| Rear hub | DT Swiss 350 classic, 12/142 mm | |
| Rims | idworx DaRim LaW-Tr, 622-30, 32 H | |
| Spokes / nippels | Stainless black / Messing | |
| Tires | Schwalbe Marathon Efficiency 40/622, Schwalbe SV19E Aerothan innertube | |
| Lights | Front | SON-idworx Edelux II for idworx cable harness, idworx CNC lightmount |
| Rear | B+M Toplight line plus brake | |
| Finishing kit | Handlebar | Ergotec Randonneur 440 mm, 31.8 mm |
| Stem | DD 80/80/100 mm, 31.8 mm. 7° | |
| Handlebar grips | Ergotec handlebar tape | |
| Seatpost | DD27,2 mm | |
| Saddle | Selle Italia SLR Boost Ti 155 mm | |
| Carriers front / rear | x / Tubus Liviano Ti | |
| Mudguards | idworx SKS P45 | |
| Options - Extra's | Seatpost | USE Duro Ti Titanium seatpost 27,2/350 mm, Max. cyclist weight 85 kg By.Schulz G2 ST suspension seatpost |
| Carriers | Tubus Duo-Ti Lowrider idworx DaCage I bottle carrier for 1,5L bottles | |
| Performance Parts | Headset | Cane Creek Viscoset |
| Carrier | idworx DaBrace rear carrier stabilizer | |
| Product information | Colour | Super Black Super Natural |
| Weight | 12,4 kg* * Without Pedals and options |
Please note that, based on component availabiltity and other factors specifications are subject to change without notice

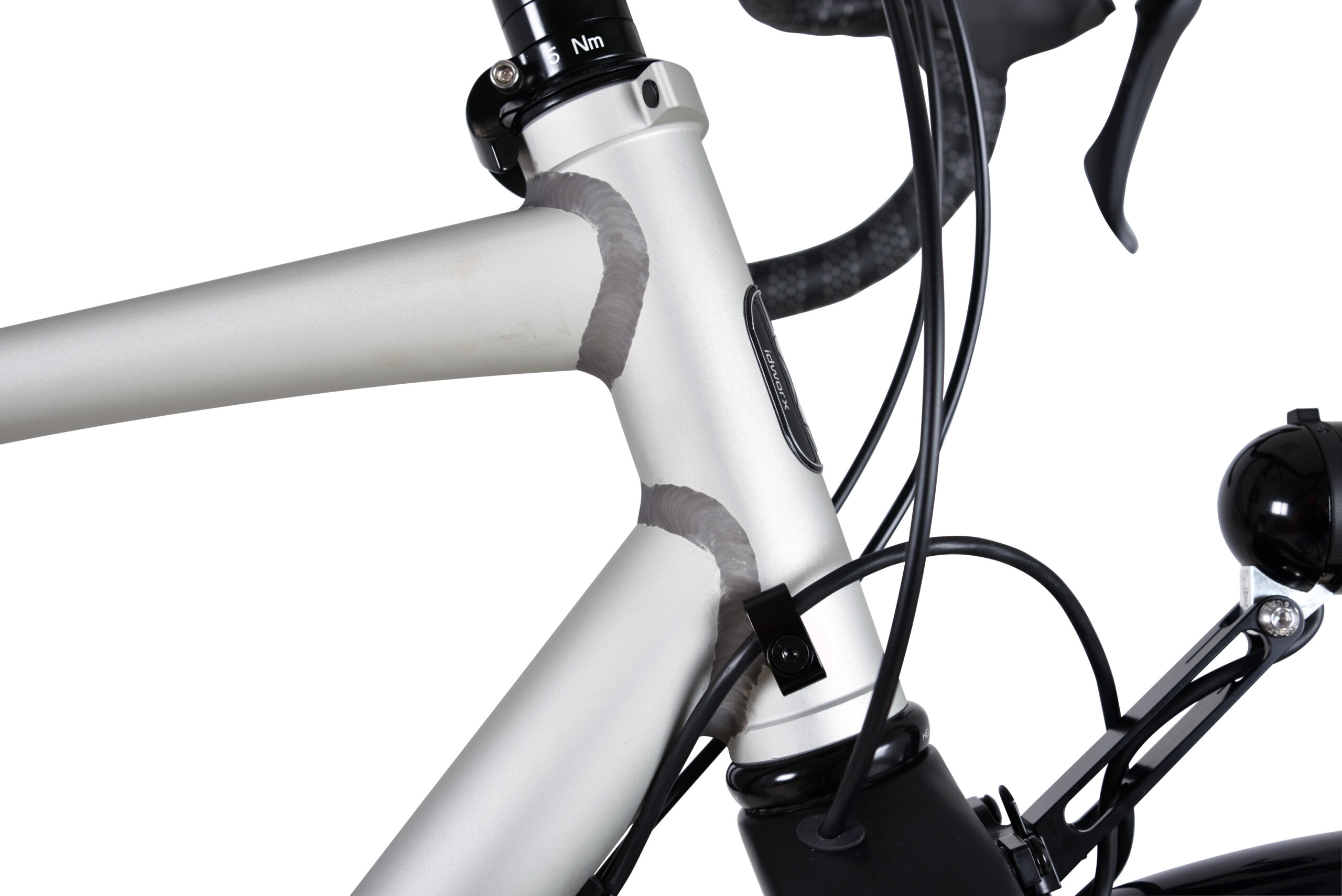

idworx Stress Reducer steering angle limiter
effectively prevents the front wheel from turning over and thus protects against damage to the frame, headlights or even the shift cables and brake hoses, which can occur due an accident or if the bike falls over.
