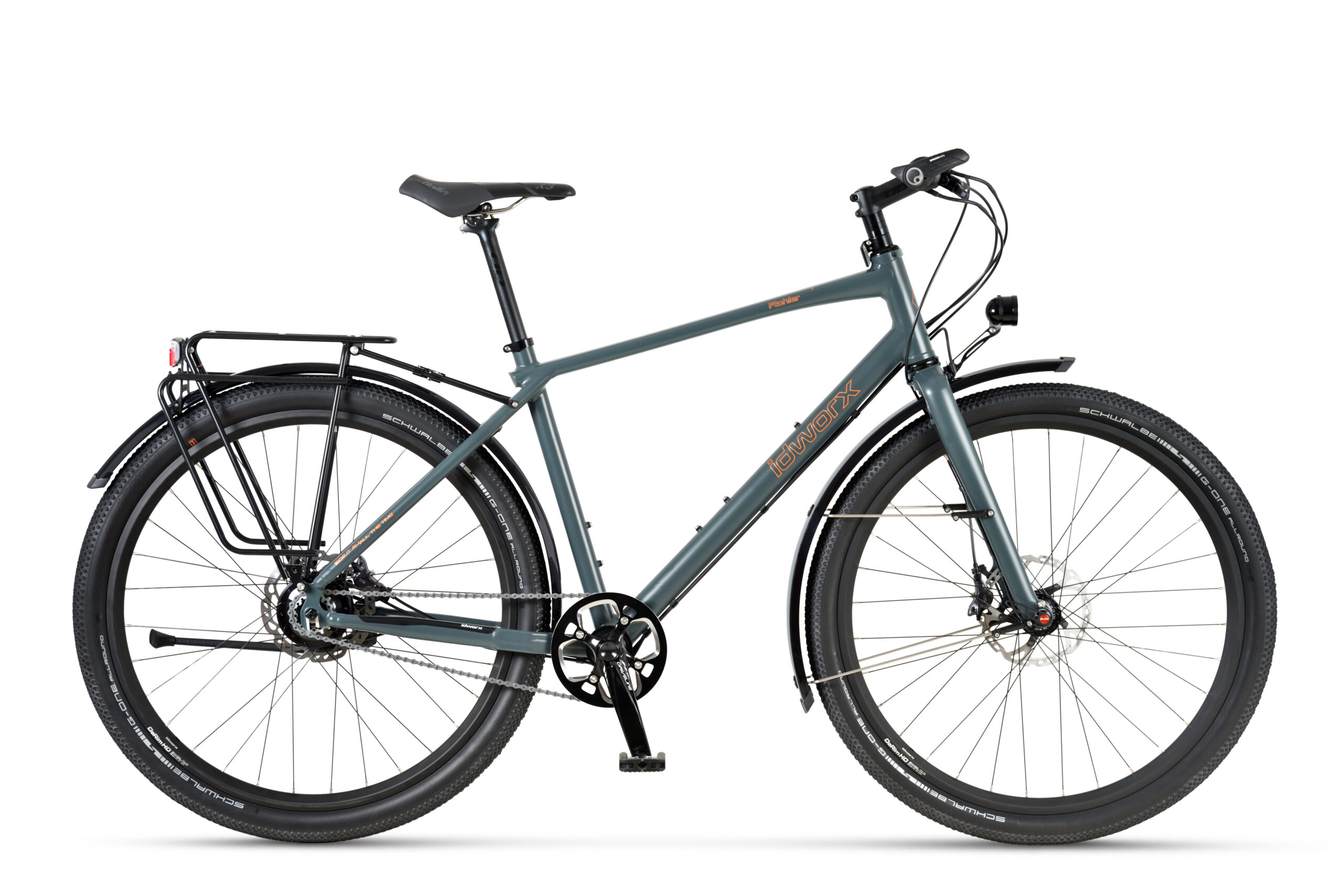

idworx Rohler BLT – The Ultimate Aluminum Adventure Bike with Rohloff Gear Hub
The idworx Rohler BLT is a high-performance aluminum adventure bike designed for riders who want to explore the world both on-road and off-road. Built for demanding bikepacking trips, expedition cycling, and remote off-road adventures, this premium travel bike combines durability, low maintenance, and outstanding riding performance.
Based on the proven frame geometry of the popular oPinion BLT model and specially optimized for use with the legendary Rohloff gear hub, the Rohler BLT delivers a sporty and highly capable riding experience—even far beyond the beaten path. Its completely redesigned triple-butted aluminum frame offers exceptional strength, low weight, and long-term reliability, making it the perfect companion for serious adventure cyclists.
The newly developed aluminum frame features three bottle cage mounting positions, ideal for long-distance touring and bikepacking setups. In addition, the redesigned top tube significantly improves frame stiffness, ensuring better power transfer, stability, and control on rough terrain.
A key technical highlight is the idworx EBB Longlife II eccentric bottom bracket, which allows simple and precise chain tension adjustment. As the only bottom bracket on the market with bearings specifically dimensioned for high loads, it guarantees an extremely long service life, smooth operation, and maximum reliability—even under the toughest riding conditions.
The low-maintenance Rohloff gear hub is world-renowned for its durability, precision, and performance, making it one of the best drivetrain solutions for expedition bikes and adventure touring bicycles. Combined with the proven idworx off-road geometry, the Rohler BLT offers excellent handling, superior comfort, and confident control across all types of terrain—from gravel roads to mountain trails.
Available in frame sizes 46 cm, 51 cm, and 56 cm, the idworx Rohler BLT is built for cyclists who demand reliability, comfort, and performance without compromise.
Whether you're planning a bikepacking weekend, a remote gravel expedition, or a round-the-world cycling journey, the idworx Rohler BLT is engineered to handle every adventure—reliably, comfortably, and with true expedition-ready performance.
idworx Specials
![copyright protected henk bruyns beeldprodukties 2012
[#Beginning of Shooting Data Section]
Nikon D3X
2014/09/12 10:27:47.49
Time Zone and Date: UTC+1, DST:OFF
RAW (14-bit)
Image Size: L (6048 x 4032), FX
Lens: VR 105mm f/2.8G
Artist: HENKBRUYNS
Copyright: BRUYNSBEELDPRODUKTIES
Focal Length: 105mm
Exposure Mode: Manual
Metering: Matrix
Shutter Speed: 1/60s
Aperture: f/22
Exposure Comp.: 0EV
Exposure Tuning:
ISO Sensitivity: ISO 200
Optimize Image:
White Balance: Auto, 0, 0
Focus Mode: Manual
AF-Area Mode: Single
AF Fine Tune: OFF
VR: OFF
Long Exposure NR: OFF
High ISO NR: OFF
Color Mode:
Color Space: sRGB
Tone Comp.:
Hue Adjustment:
Saturation:
Sharpening:
Active D-Lighting: Normal
Vignette Control: Normal
Auto Distortion Control:
Picture Control: [SD] STANDARD
Base: [SD] STANDARD
Quick Adjust: 0
Sharpening: 3
Contrast: Active D-Lighting
Brightness: Active D-Lighting
Saturation: 0
Hue: 0
Filter Effects:
Toning:
Map Datum:
Image Authentication: OFF
Dust Removal:
[#End of Shooting Data Section]](https://www.idworx-bikes.de/wp-content/uploads/2026/05/RnR-aandrijving-1536x1024.jpeg "RnR aandrijving")
![copyright protected henk bruyns beeldprodukties 2012
[#Beginning of Shooting Data Section]
Nikon D3X
2015/09/17 10:26:33.31
Time Zone and Date: UTC+1, DST:OFF
RAW (14-bit)
Image Size: L (6048 x 4032), FX
Lens: VR 105mm f/2.8G
Artist: HENKBRUYNS
Copyright: BRUYNSBEELDPRODUKTIES
Focal Length: 105mm
Exposure Mode: Manual
Metering: Matrix
Shutter Speed: 1/60s
Aperture: f/18
Exposure Comp.: 0EV
Exposure Tuning:
ISO Sensitivity: ISO 200
Optimize Image:
White Balance: Auto, 0, 0
Focus Mode: Manual
AF-Area Mode: Single
AF Fine Tune: OFF
VR: OFF
Long Exposure NR: OFF
High ISO NR: OFF
Color Mode:
Color Space: sRGB
Tone Comp.:
Hue Adjustment:
Saturation:
Sharpening:
Active D-Lighting: Normal
Vignette Control: Normal
Auto Distortion Control:
Picture Control: [SD] STANDARD
Base: [SD] STANDARD
Quick Adjust: 0
Sharpening: 3
Contrast: Active D-Lighting
Brightness: Active D-Lighting
Saturation: 0
Hue: 0
Filter Effects:
Toning:
Map Datum:
Image Authentication: OFF
Dust Removal:
[#End of Shooting Data Section]](https://www.idworx-bikes.de/wp-content/uploads/2026/05/RoP_ti_Yoke-II-1536x1024.jpeg "RoP_ti_Yoke-II")
| ST (A) | HT (B) | HA (C) | Rake (D) | Drop (E) | CS (F) | TT (G) | SA (H) | Stack | Reach | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rohler BLT | 46 | 140 | 71 | 45 | 60 | 476 | 600 | 73,5 | 594 | 424 |
| Rohler BLT | 51 | 178 | 71 | 45 | 60 | 476 | 620 | 73 | 630 | 427 |
| Rohler BLT | 56 | 220 | 71 | 45 | 55 | 476 | 640 | 72,5 | 664 | 430 |
| Generation | Model |
|---|---|
| Gen. 1.4 | Rohler BLT |
| Section | Item | Description |
|---|---|---|
| Frame | Material | triple butted 6061 T6 Aluminium |
| Dropouts | Belt-Ready, Rohloff OEM1 | |
| Brake mount | Disc, IS2000 | |
| Bottom bracket | idworx Excentric | |
| Kickstand mount | 18 mm / M6 | |
| Specials | iSR steering block limiter, Asymetric chainstays | |
| Sizes | 46, 51, 56 | |
| Fork | Material | triple butted 6061 T6 Aluminium |
| Dropouts | Forged, 15 / 110 mm Thru Axle, SON SL prepared | |
| Brake mount | Disc, IS2000 | |
| Headset | Cane Creek Hellbender 70, 1 1/8- 1 1/2, ZS44/EC44 | |
| Specials | Very sturdy, Special light and fender mount, Twin Lowrider mounts | |
| Drivetrain | System | Rohloff Speedhub |
| Gears / gear ratio | 14 /13,5% | |
| Chainrings / Cassette | idworx Long Life 43T / Rohloff 17T | |
| Chain | KMC e1 EPT | |
| Crankset | Driveline 170 (S-M), 175 (L-XXL) | |
| Bottom bracket | idworx EBB Lite with Driveline GXP 68/73 | |
| Brakes | System | Shimano MT 400, 4-Piston, 3-Finger, Resin |
| Brake discs | Shimano 180 mm / idworx Rohloff 180 mm | |
| Wheels | Front hub | SON 28 15 / 110 mm, Disc 6 bolt, SON SL Self-Connecting |
| Rear hub | Rohloff Speedhub, 9 /135 mm | |
| Rims | idworx DaRim Disc II, 622-25, 32 H | |
| Spokes / nippels | Stainless black / Messing | |
| Tires | Schwalbe G-One Allround 57/622, Schwalbe SV19A innertube | |
| Lights | Front | SON-idworx Edelux II for idworx cable harness, idworx CNC lightmount |
| Rear | B+M Toplight line plus brake | |
| Finishing kit | Handlebar | DD 640 mm, 31.8 mm, 9° backsweep |
| Stem | DD 100 mm, 7° | |
| Handlebar grips | Ergon GP3L | |
| Bell | Billy | |
| Seatpost | DD 27,2 mm | |
| Saddle | Selle Italia X-Bow 155 mm | |
| Carriers front / rear | x / Tubus Logo 29 | |
| Mudguards | idworx SKS CAB 75 | |
| Lock | x | |
| Options - Drive Technology | Ghainguard | idworx Hesling closed chaincase |
| Beltdrive | Gates CDX Beltdrive 50/22-122T | |
| Sprocket | idworx DaRing 17T | |
| Bottom bracket | idworx EBB Long Life | |
| Crankset | idworx DaCrank with idworx EBB Long Life | |
| Options - Cockpit | Adjustable stem | DD Swell 100 mm, -10° to +40° |
| Riser bar | DD Riserbar | |
| Curved handlebar | DD Citybar + Ergon GC1 grips | |
| Comfort handlebar | Flex Bars Advanced | |
| Options - Extra's | Seatpost | USE Duro Ti Titanium seatpost 27,2/350 mm, Max. cyclist weight 85 kg By.Schulz G2 ST suspension seatpost |
| Carriers | Tubus Duo Lowrider Tubus Duo-Ti Lowrider Tubus Liviano-Ti Rear carrier idworx DaCage I bottle carrier for 1,5L bottles | |
| Innertube | Schwalbe Aerothan SV19E Schwalbe Clickvalve not possible with Aerothan | |
| Performance Parts | Headset | Cane Creek Viscoset |
| Fork | idworx DaFork carbon fork (not with iBD and iMD) | |
| Carbon rims | idworx DaRim LaW-Tr, 622-30, 32H | |
| Heavy-Duty rims | idworx DaRim HD, 622-30, 32H | |
| Brake system | iBD, Hope V2 with 3,2/203 mm idworx Discs iMD, Shimano MT 400, 4-Piston with 2,0/203 mm idworx Discs | |
| Performance Parts | Carrier | idworx DaBrace rear carrier stabilizer |
| Product information | Colour | Dynamic Grey idworx Colour Program |
| Weight | 15,5 kg * * Without Pedals, Lock and options |
Please note that, based on component availabiltity and other factors specifications are subject to change without notice
idworx Stress Reducer steering angle limiter
It effectively prevents the front wheel from turning and thus protects against damage to the frame, headlight or even the shift and brake cables, such as can occur due to a fall or the bicycle tipping over.
idworx EBB Long Life II
Eccentric bottom bracket with integrated, rustproof ball bearings. The only bottom bracket on the market with bearings that are actually sized to suit the load for an extremely long service life and optimal smooth running even under the highest loads. It also offers the option of installing our idworx Hesling chain case. Suitable for all idworx Rohloff models with eccentric bottom bracket for adjusting the chain play. Our idworx EBB-LL II is also compatible with Gates Carbon Drive belt drive.
idworx Long Life Chain Rings
The Long Life chain ring we developed at idworx made of hardened stainless steel with an uneven number of teeth together with the extra-hardened idworx KMC E1 ePT chain and the idworx Rohloff steel sprocket, makes for unprecedented longevity. In our oPinion models we even fit our Long Life chain ring back and front. Chain tension requires less frequent checks - a pleasing consequence of a more wear-resistant drive.
